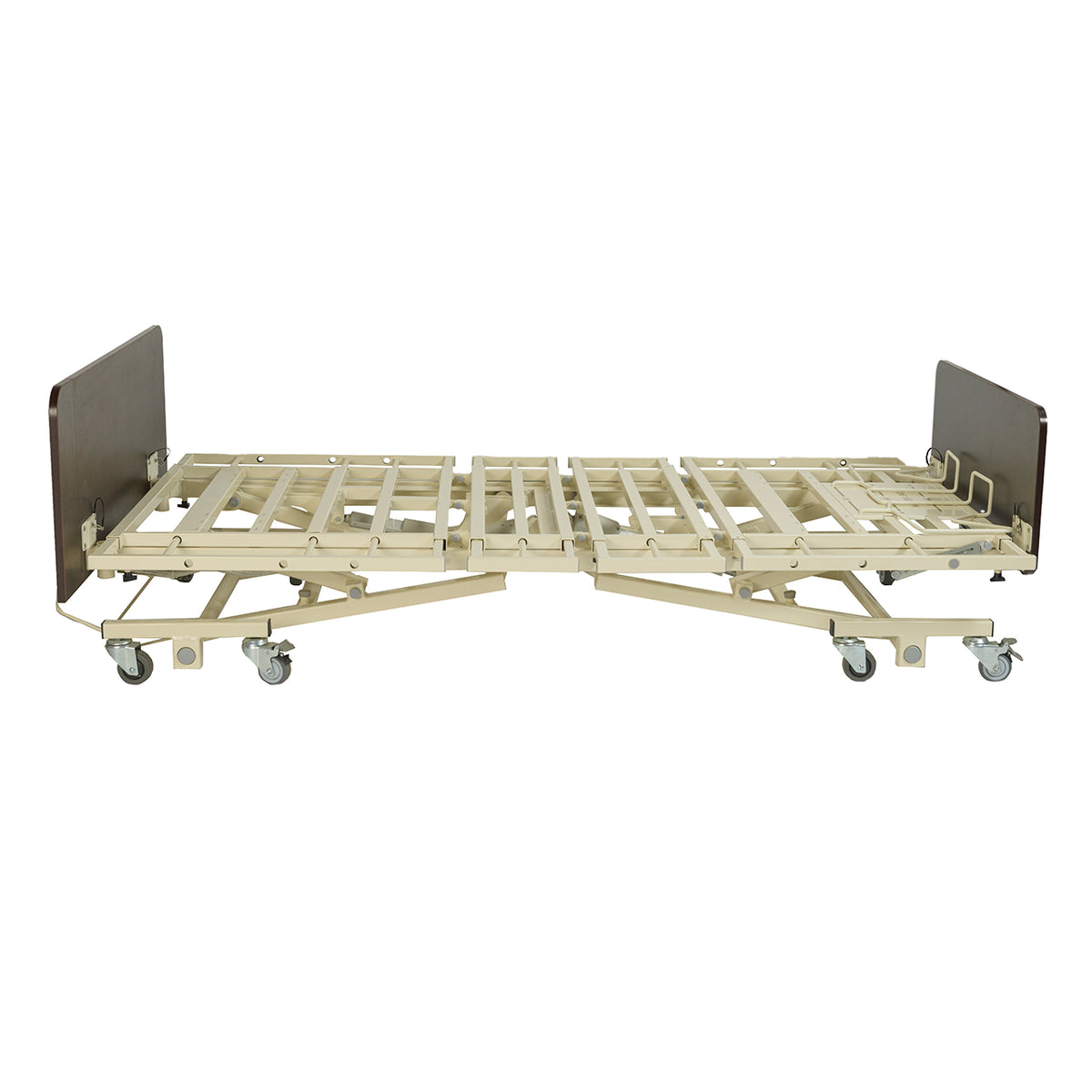

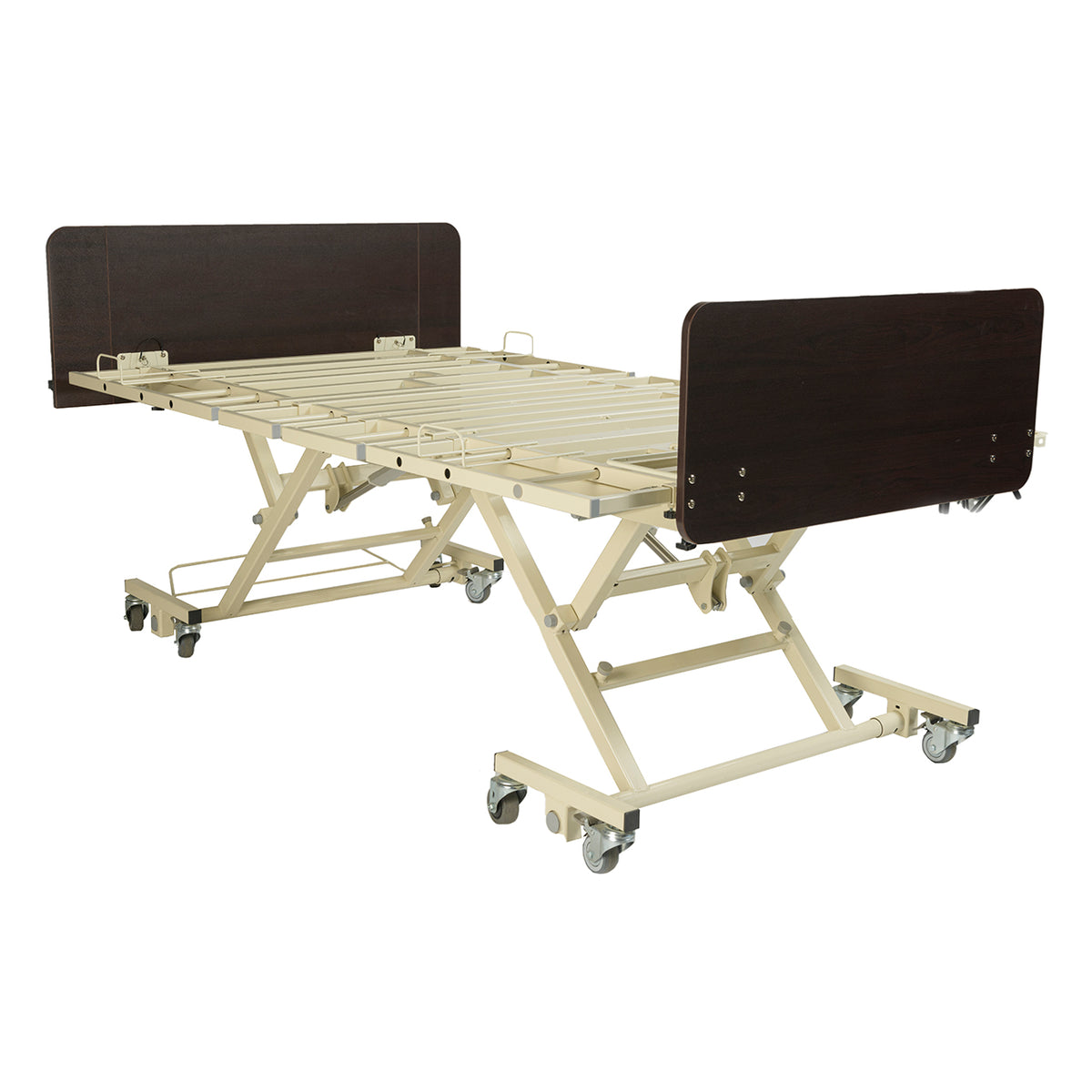

Protekt Protopia™ BARI EXP - Expandable Bariatric Long-Term Care Bed

The most versatile & cost-effective bariatric low bed in its class.

Heavy-Duty Support, Flexible Positioning, and Easier Care

The Protekt Protopia™ BARI EXP is a heavy-duty, expandable electric long-term care bed designed to accommodate residents requiring a higher weight capacity, additional sleeping space, and specialized positioning.

Featuring a 750 lb weight capacity, tool-free width and length expansion, and a low 9-inch minimum height, the BARI EXP provides flexible support for long-term care, assisted living, and residential healthcare environments.

With advanced positioning functions and durable institutional construction, it helps make everyday care more comfortable for residents and manageable for caregivers.

Key Features & Benefits

750 lb Weight Capacity: Heavy-duty welded steel frame accommodates higher-capacity care requirements.

Low 9-Inch Minimum Height: Helps reduce the potential consequences of accidental bed rollouts by positioning residents closer to the floor.

9–28-Inch Height Adjustment: Allows caregivers to adjust the bed for resident comfort and daily care activities.

Expandable Bed Width: Tool-free adjustment between 36, 42, and 48 inches provides additional sleeping space.

Extendable Bed Length: Adjusts between 80, 84, and 88 inches to accommodate different resident heights.

Trendelenburg and Reverse Trendelenburg: Provides additional positioning options for clinically appropriate care.

10-Function Hand Pendant: Convenient electric controls simplify adjustments.

Auto-Contour Positioning: Coordinated head and foot section adjustments help support resident comfort.

Adjustable Leg Elevator: Provides additional lower-extremity positioning options.

Bed Rails and Assist Bars: Available with quarter rails, pivot assist bars, QBar assist bars, or SoftTouch swing rails.

Durable Institutional Construction: Heavy-duty steel frame, wall bumper, mattress retainers, and locking casters.

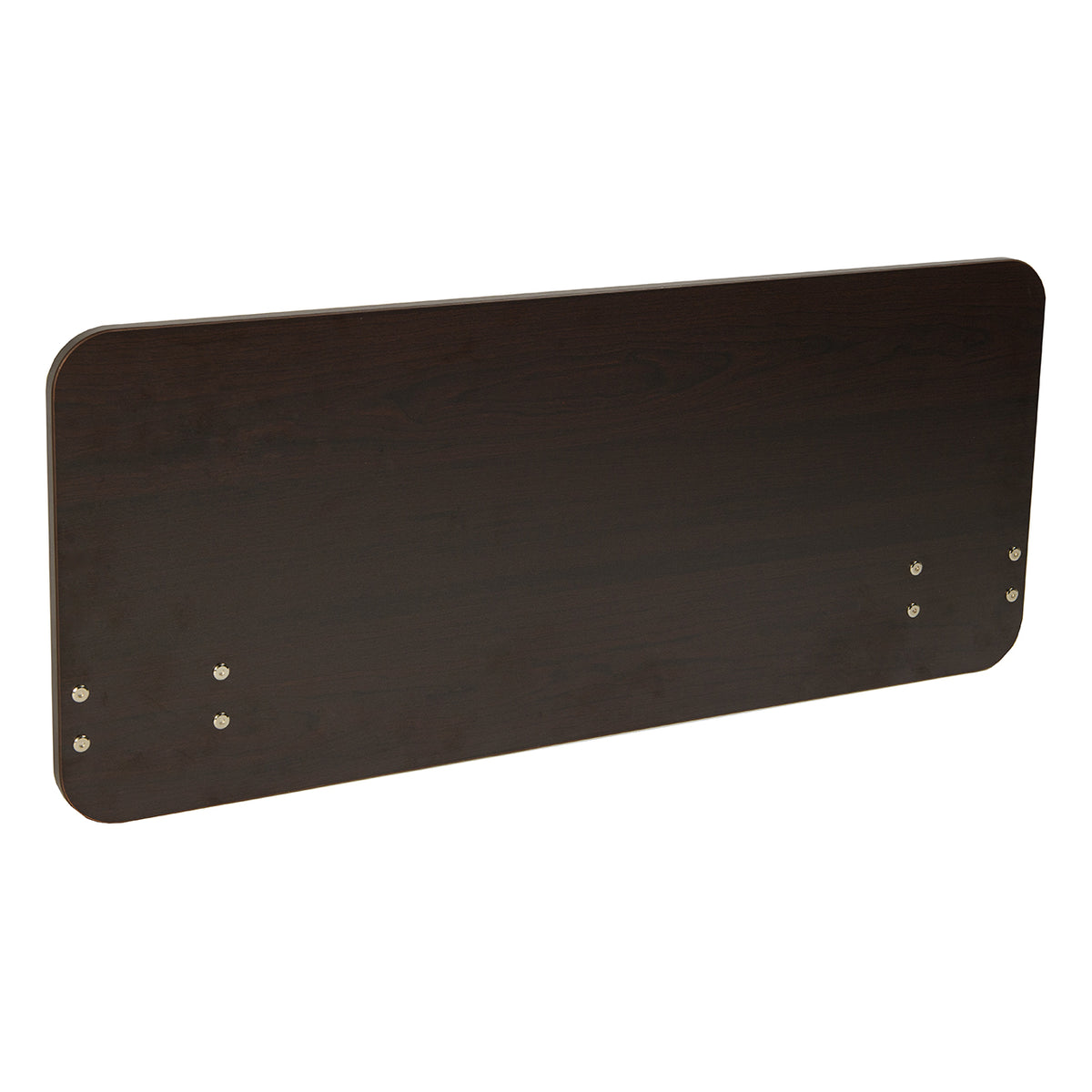

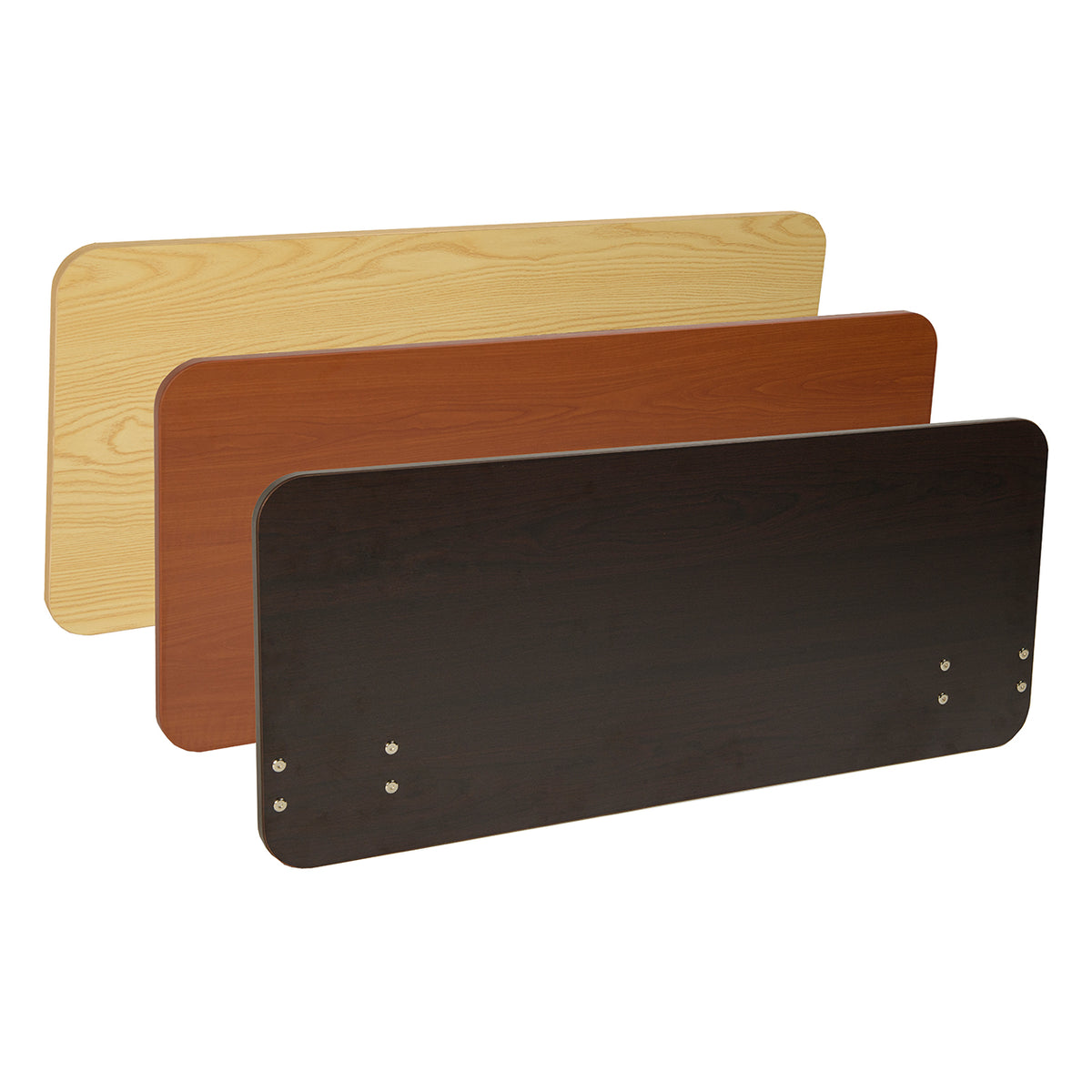

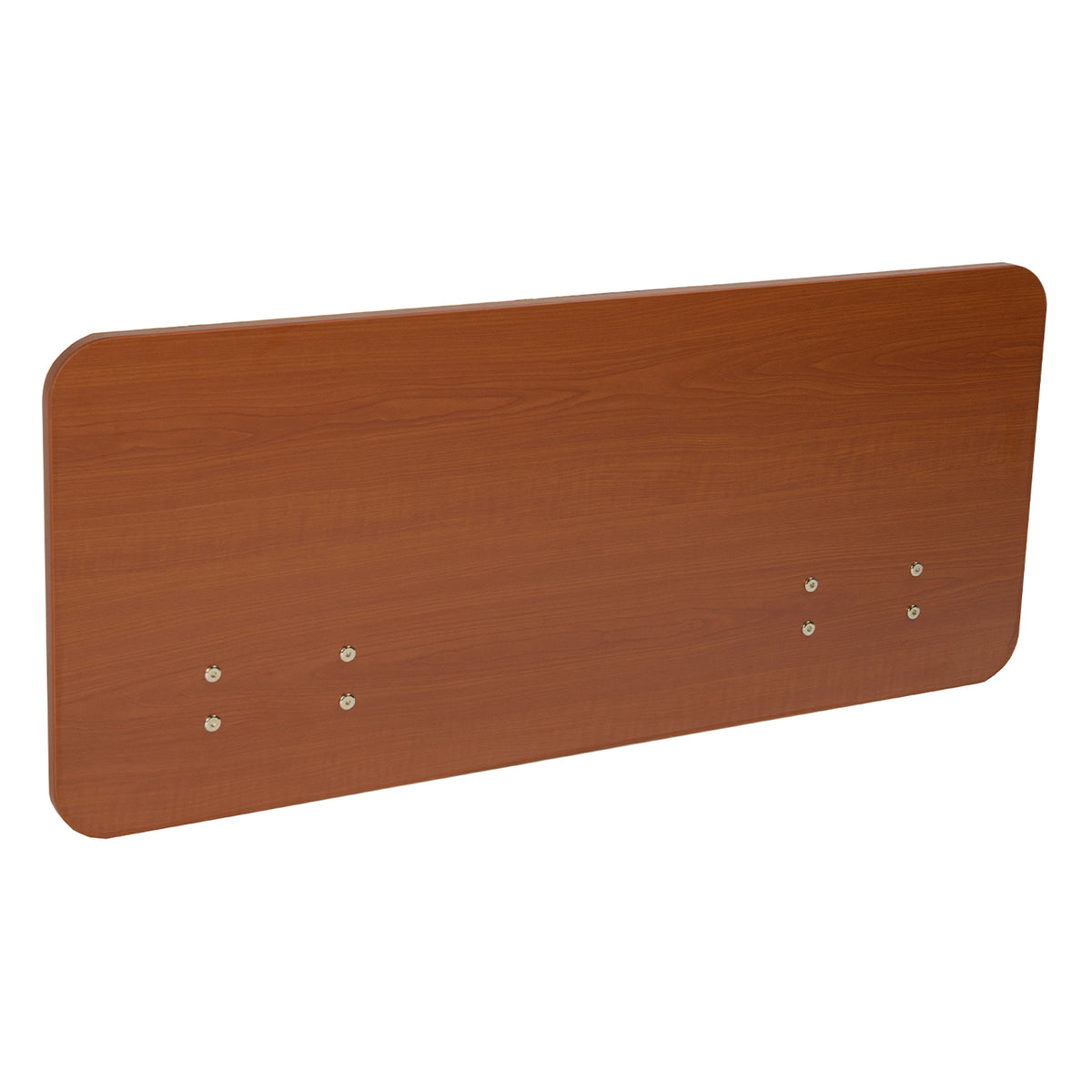

Residential-Style Finishes: Available headboard and footboard finishes include Mahogany, Amber Cherry, and Oak.

Heavy-Duty Support for Bariatric Care

Residents with higher weight-capacity requirements may need a bed that provides both dependable structural support and adequate space for comfortable positioning.

The Protekt Protopia BARI EXP supports up to 750 lbs (approximately 340 kg) and can expand to a width of 48 inches.

Its heavy-duty welded steel construction is designed for repeated use in institutional care environments.

This combination of strength and flexibility helps facilities accommodate residents requiring bariatric support.

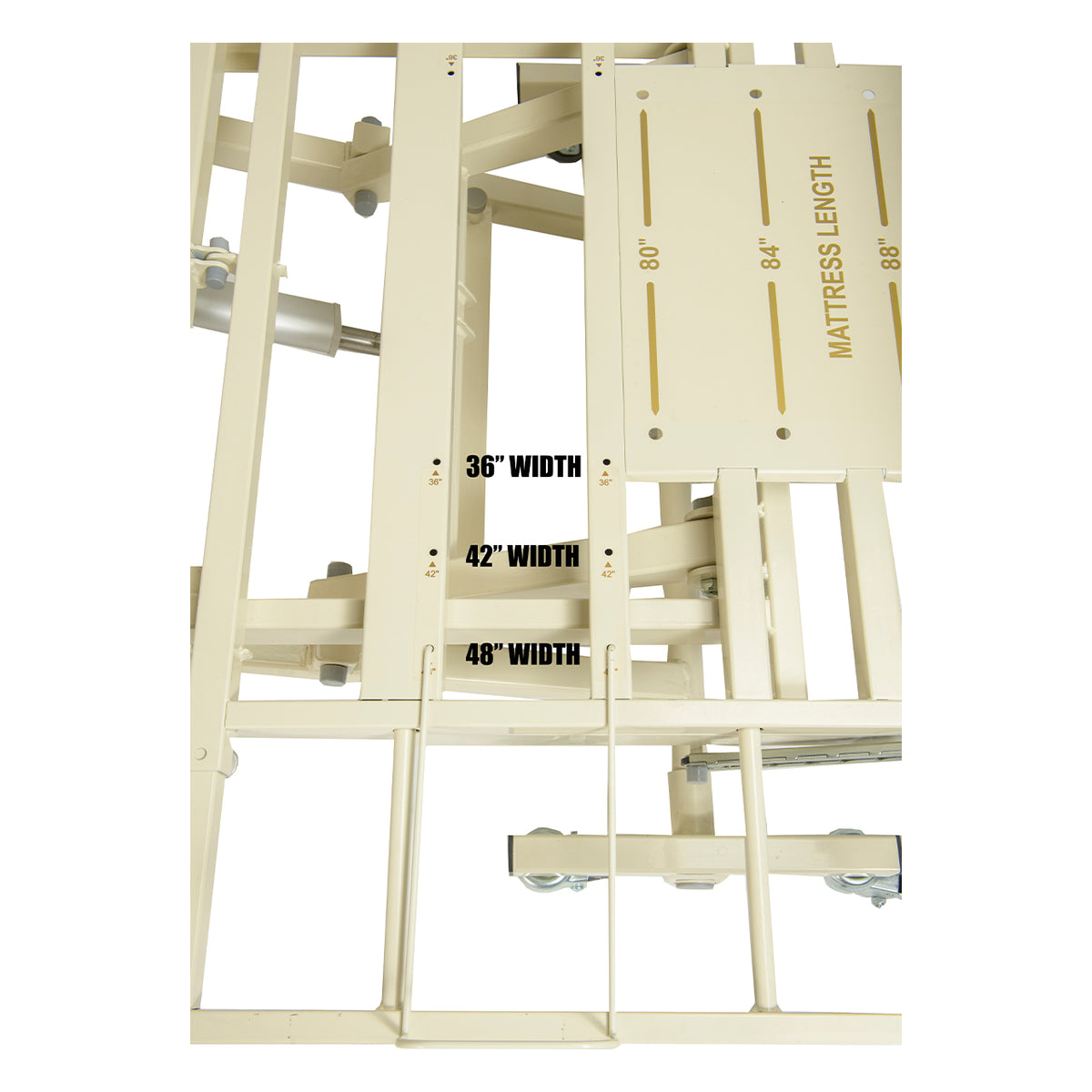

Expandable Width and Length

The BARI EXP includes integrated, tool-free expansion, allowing facilities to adjust the sleeping surface without replacing the bed frame.

Available Widths

-36 inches

-42 inches

-48 inches

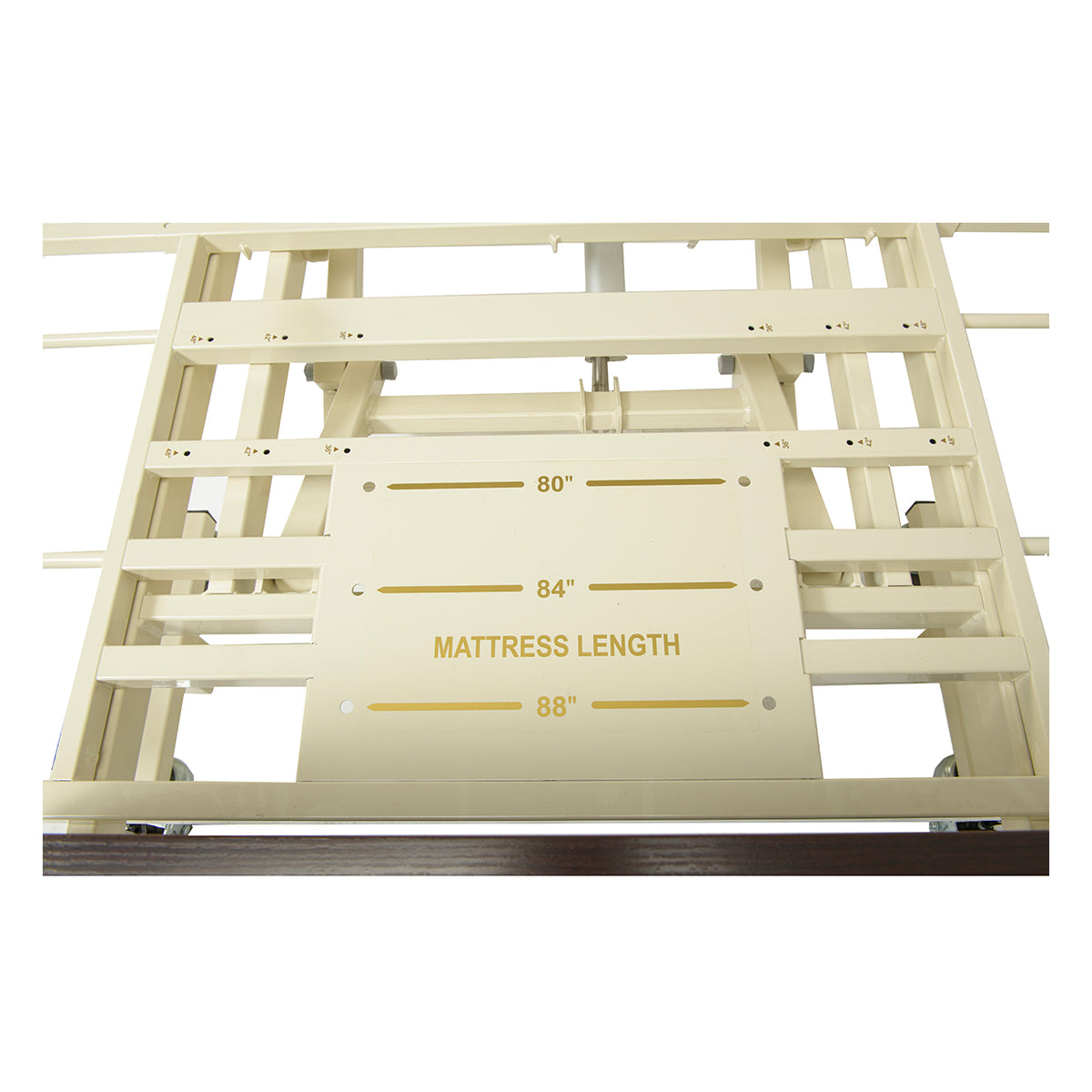

Available Lengths

-80 inches

-84 inches

-88 inches

Appropriately sized mattresses and compatible accessories must be used for the selected configuration.

Low Positioning for Resident Safety

The Protopia BARI EXP lowers to just 9 inches, helping position residents closer to the floor when resting.

Its electric height adjustment extends to 28 inches, giving caregivers flexibility during repositioning, transfers, and routine care.

Low positioning may help reduce the severity of injuries associated with accidental bed rollouts, although it does not eliminate fall risks.

Advanced Electric Positioning

The BARI EXP offers additional positioning capabilities for residents with more complex care requirements.

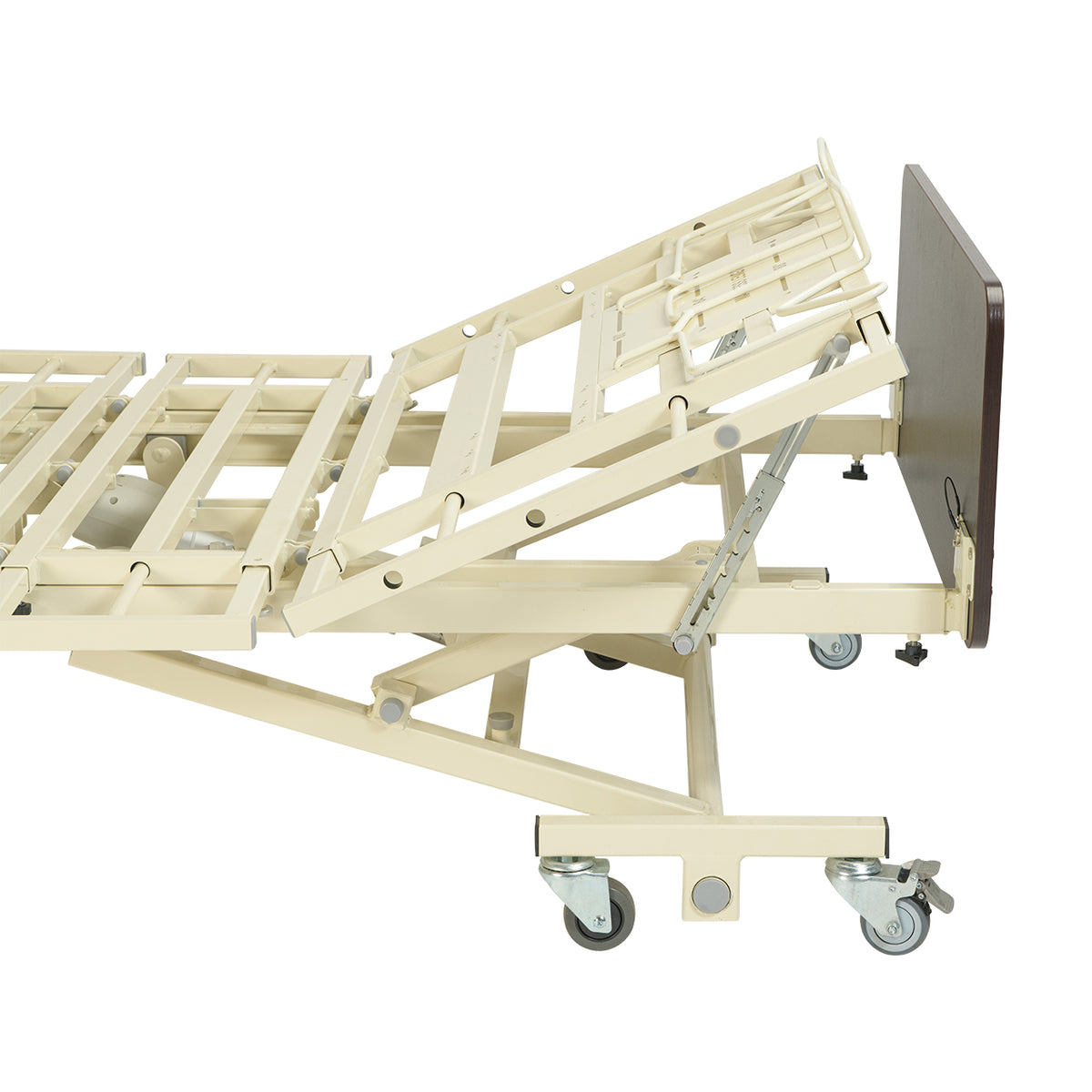

Trendelenburg and Reverse Trendelenburg

Allows the bed to be positioned with either the head or foot end elevated relative to the other. These functions should be used according to clinical guidance.

Auto-Contour

Coordinates movement of the head and foot sections to provide convenient positioning adjustments.

Adjustable Leg Elevator

Offers additional lower-extremity positioning options to support individualized comfort and care requirements.

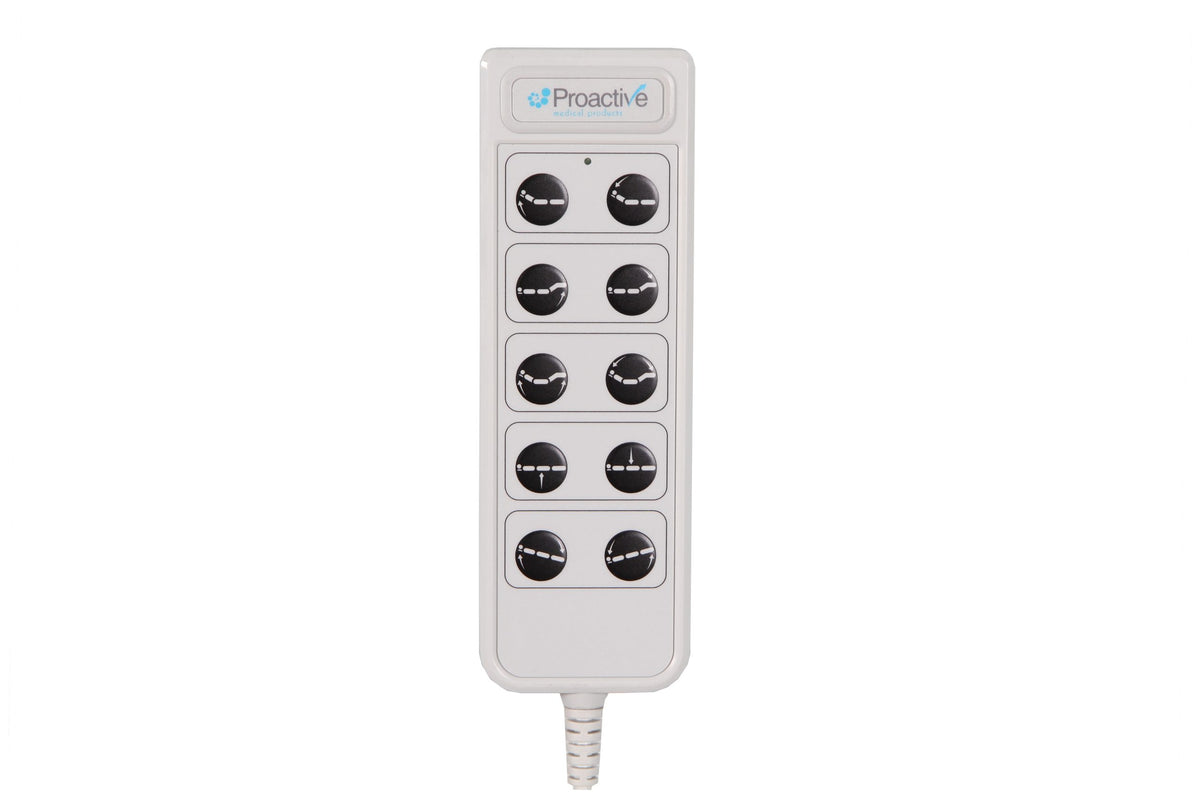

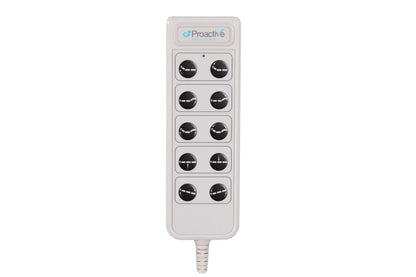

10-Function Hand Pendant

Provides convenient access to the bed's electric positioning adjustments.

Designed for Long-Term Care Environments

The Protopia BARI EXP combines specialized bariatric functionality with practical institutional features:

-Heavy-duty welded steel frame

-Protective wall bumper bar

-Corner mattress retainers

-Quick-release head and foot boards

-Eight 3-inch casters, including four locking and four swivel casters

-Multiple headboard and footboard finishes

These features support daily operation, maintenance, and equipment management within care facilities.

Available Bed Rail and Assist Options

The BARI EXP offers the following rail configurations:

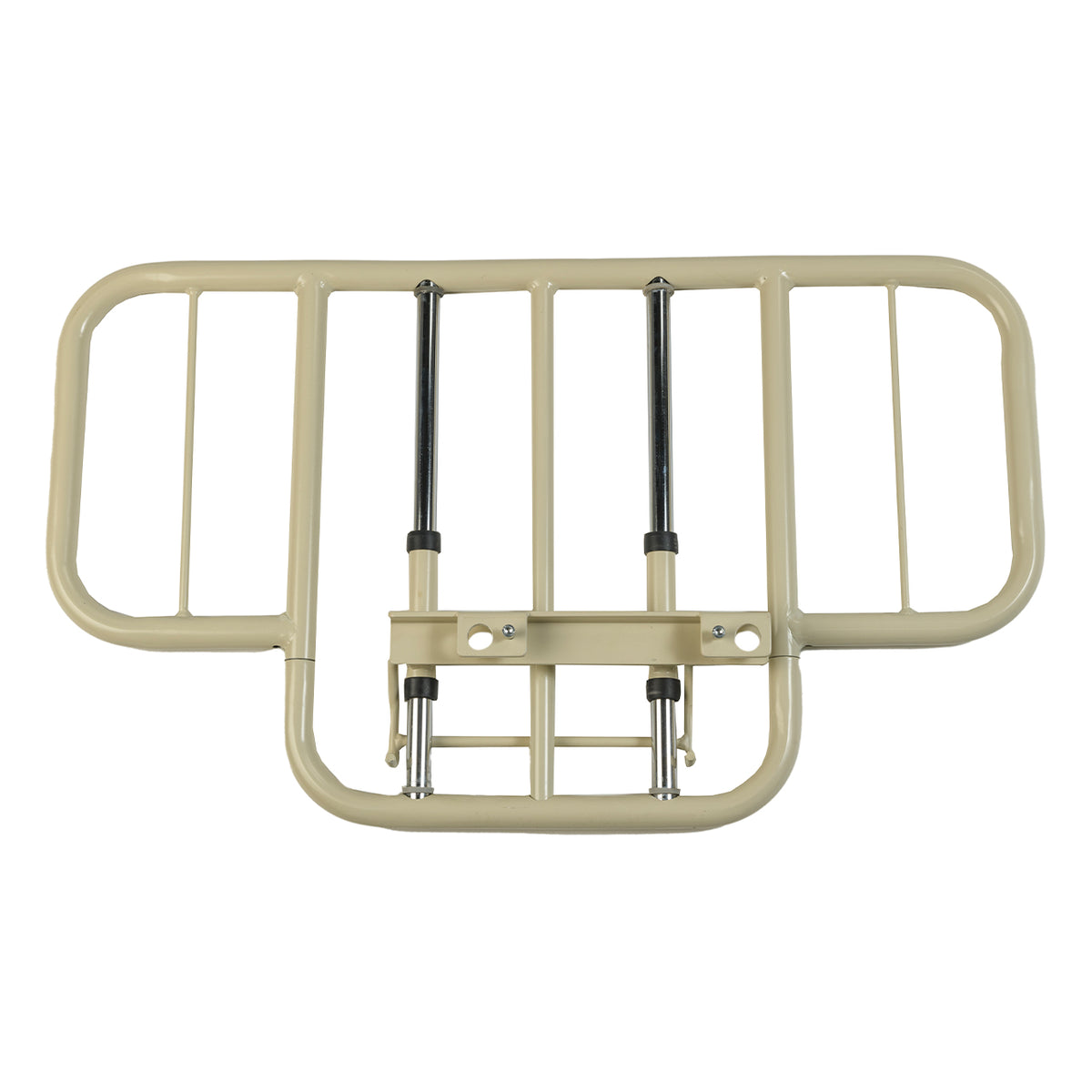

-Quarter Side Rails

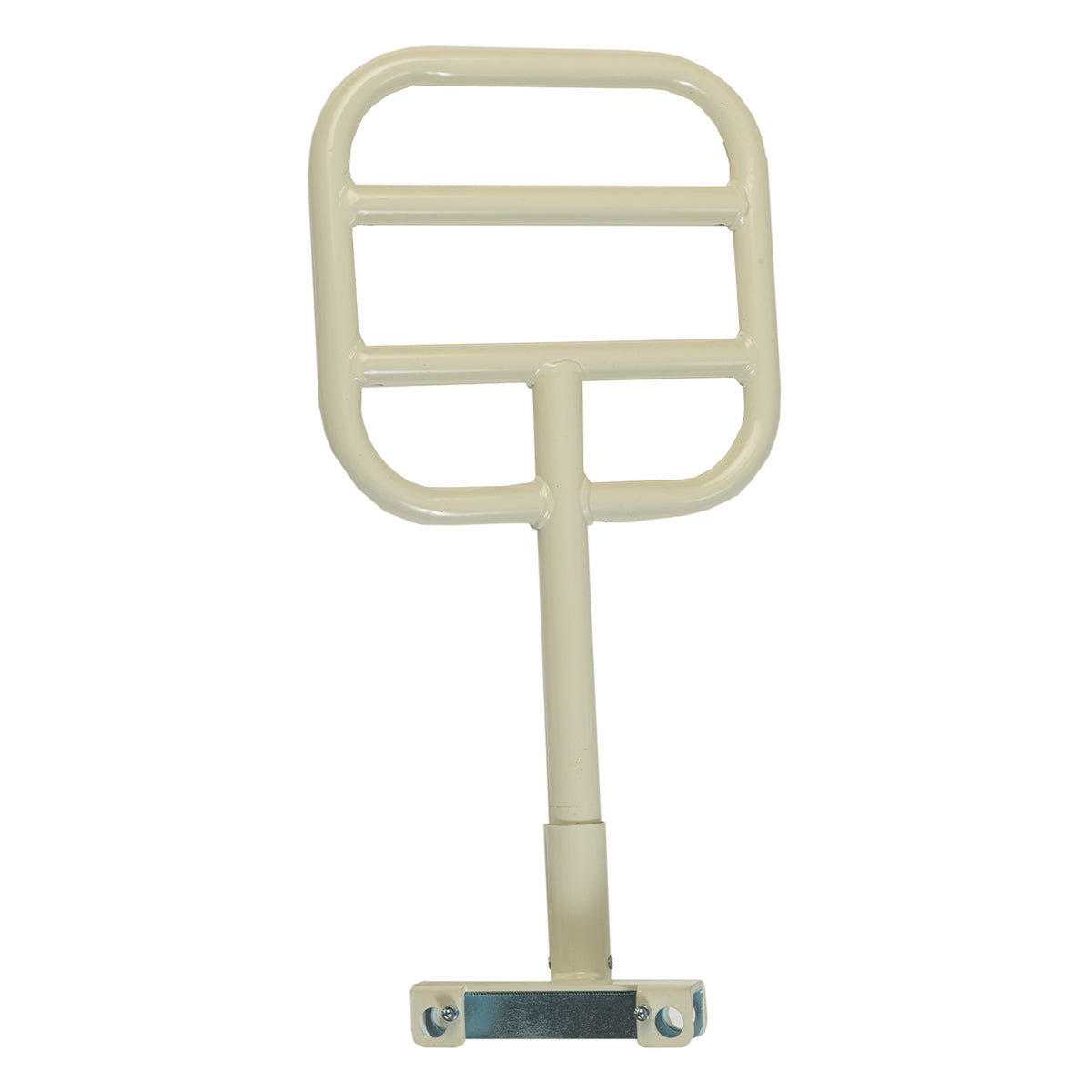

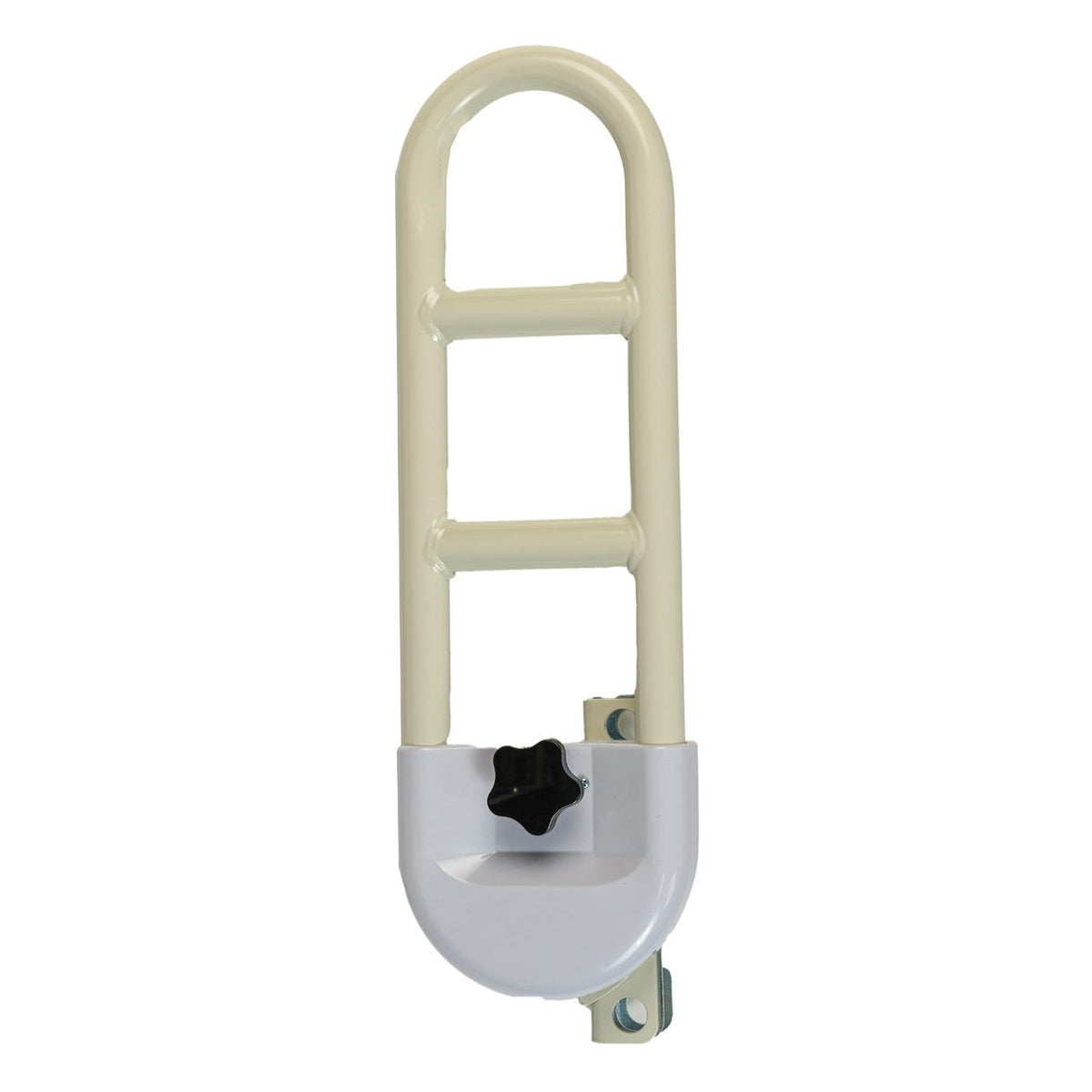

-Pivot Assist Bars

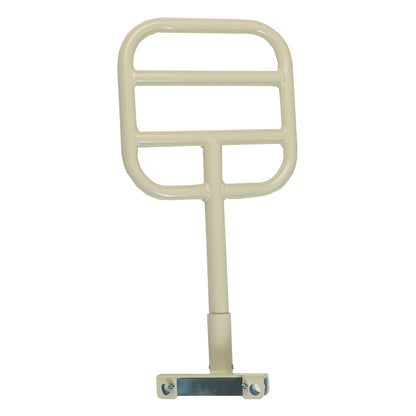

-QBar Assist Bars

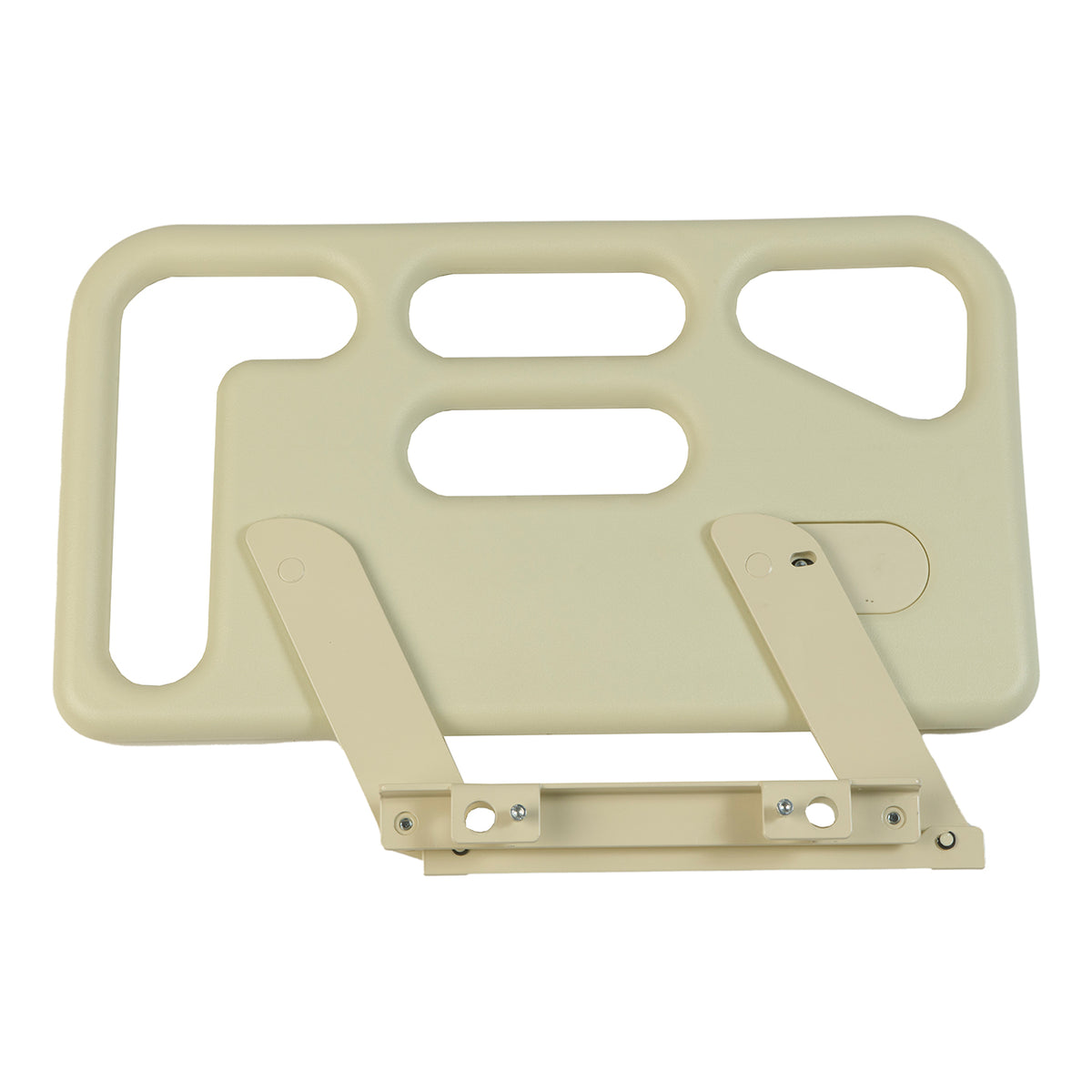

-SoftTouch Swing Rails

Rail selection should be based on individual resident needs, mobility, transfer abilities, and bed-entrapment safety requirements.

Technical Specifications

Specification	Protekt Protopia™ BARI EXP
Model	PMLTCBARI
Bed type	Bariatric expandable electric long-term care bed
Minimum height	9 in (22.9 cm)
Maximum height	28 in (71.1 cm)
Expandable widths	36, 42, 48 in
Extendable lengths	80, 84, 88 in
Weight capacity	750 lb (approximately 340 kg)
Frame construction	Heavy-duty welded steel
Hand pendant	10-function
Positioning	Trendelenburg, reverse Trendelenburg, auto-contour
Leg positioning	Adjustable extending leg elevator
Casters	Eight 3-inch casters, four locking and four swivel
Board finishes	Mahogany, Amber Cherry, Oak
Rail options	Quarter Rail, Pivot Assist, QBar, SoftTouch Swing

Manufacturer Warranty

-Frame: 15 years

-Electrical Components: 5 years

-All Other Parts: 1 year

Warranty coverage is subject to the manufacturer's terms and conditions.

Important Safety and Compatibility Information

Bariatric beds should be selected according to the resident's weight, body dimensions, mobility, transfer requirements, and clinical needs.

The selected mattress must be compatible with the bed's width and length configuration and have an appropriate weight capacity.

Bed rails and assist bars require assessment for entrapment hazards and individual suitability.

Trendelenburg and reverse Trendelenburg positioning should only be used when clinically appropriate.

Always follow the manufacturer's operating instructions and applicable Canadian healthcare safety requirements.
