Swifty

Swifty & Swifty²

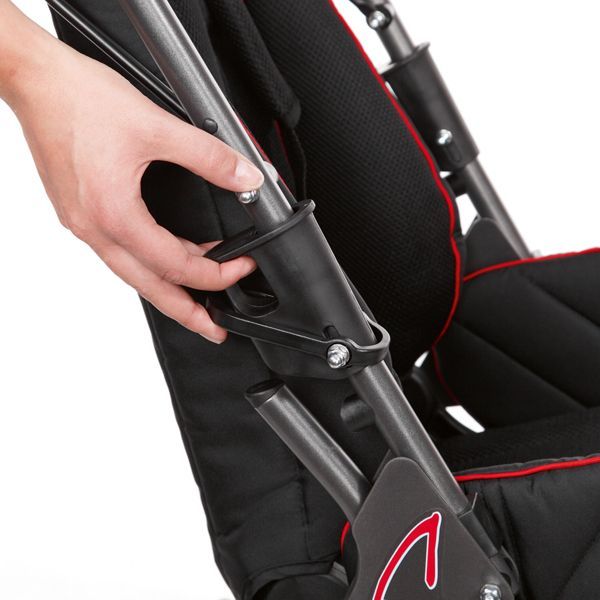

The lightweight stroller – easy folding and quick transport.
Two sizes available – 1 and 2

Features and Benefits:

Solid seat and back rest for a comfortable and firm seat base
Easy adjustments for simple use
Backrest reclines to a relaxing position

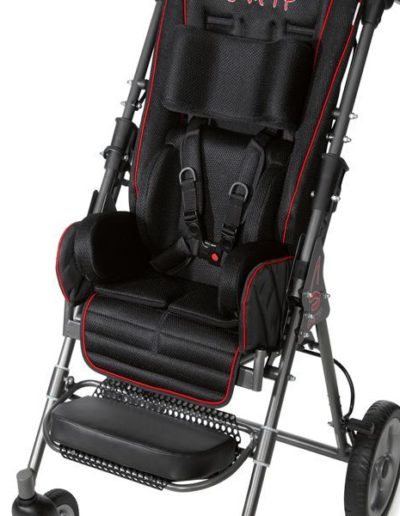

Seat Minimizer extends the growth range of Swifty
Crash tested to WC-19

Technical Data

	Swifty
Seat depth (with seat minimizer)	22 (17 cm) – 28.5 cm / 8.7 (6.9) – 11.2″
Seat width (with seat minimizer)	34 cm (23 cm) / 13.4″ (9.1″)
Back height	62 cm / 24.4″
min. shoulder height (with seat minimizer)	26 cm / 10.2″
Lower leg length (with seat minimizer)	16 (12 cm) – 33 cm / 6.3 (4.7″) – 13″
Hip angle	90° to 115°
Foot angle	90°
Seat tilt-in-space fix	+15°

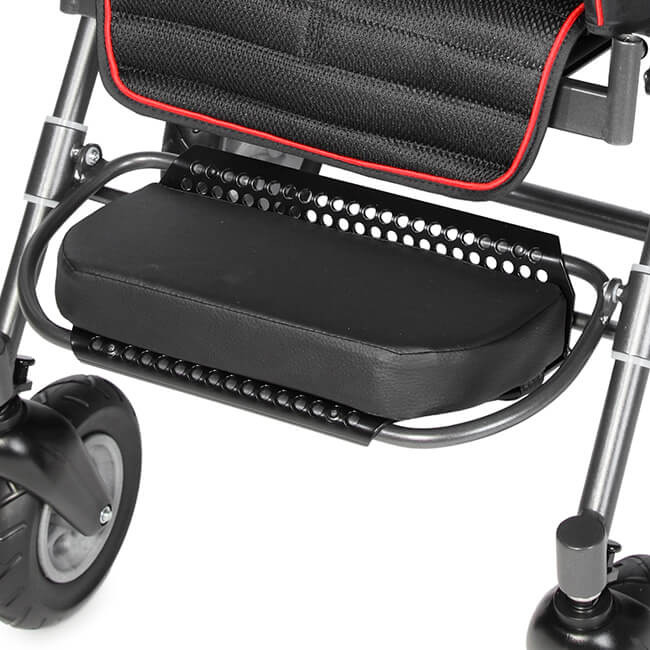

Size of foot rest (w x d)	31 x 18 cm / 12.2 x 7.1″
Push bar height	80 – 119 cm / 31.5 – 46.9″
Wheel size swivel wheels (front)	18 cm / 7.1″
Wheel size (rear)	25 cm / 9.8″
Overall width	61 cm / 24″
Overall dimensions (w x h x l)	61 x 102 x 98 cm / 24 x 40.2 x 38.6″
Folded dimensions (w x h x l)	61 x 38 x 73 cm / 24 x 15 x 28.7″
Weight	12.4 kg / 27.3 lb
Carrying capacity	35 kg / 77.2 lb

	Swifty²
Seat depth (with seat minimizer)	34 cm (24.5 cm) – 40 cm / 13.4″ (9.6″) – 15.7″
Seat width (with seat minimizer)	39.5 cm (29.5 cm) / 15.6″ (11.6″)
Back height	70 cm / 27.6″
min. shoulder height (with seat minimizer)	30 cm / 11.8″
Lower leg length (with seat minimizer)	21 (21 cm) – 37 cm / 8.3 (8.3 “) – 14.6”
Hip angle	90° to 100°
Foot angle	90°
Seat tilt-in-space fix	+20°
Size of foot rest (w x d)	31 x 20 cm / 12.2 x 7.9″
Push bar height	82 – 124 cm / 32.3 – 48.8″
Wheel size swivel wheels (front)	18 cm / 7.1″
Wheel size (rear)	25 cm / 9.8″
Overall dimensions (w x h x l)	67 x 113 x 98 cm / 26.4 x 44.5 x 38.6″
Folded dimensions (w x h x l)	67 x 49 x 79 cm / 26.4 x 19.3 x 31.1″
Weight	18.2 kg / 40.1 lb
Carrying capacity	50 kg / 110.2 lb

Additional Information

Swifty Technical Manual 1 & 2

Swifty User Manual 1 & 2

Please contact our customer service department for current pricing” with a link to email — orders@lighthousemedicalltd.com

Swifty 1 Parts List

Swifty 2 Parts List
