ComfortMedic CM1000 & CM2000 Bathtub Hoists

Safe, Comfortable & Efficient Assisted Bathing Transfers

The ComfortMedic CM1000 and CM2000 Bathtub Hoists are Canadian-made, electrically operated bathing lifts designed to support safe and comfortable resident transfers in long-term care homes, hospitals and healthcare facilities.

Manufactured in Quebec, these institutional-grade bathing chairs combine durable stainless steel and aluminum construction with smooth electric height adjustment, comfortable seating and easy maneuverability.

Available in front-access and side-access configurations, the CM1000 and CM2000 provide flexible solutions for different bathtub designs, bathing room layouts and resident care requirements.

Key Features & Benefits

Electric Height Adjustment

A quiet 24V electric lifting system allows caregivers to raise and lower residents smoothly when transferring into and out of compatible bathtubs.

400 lb Weight Capacity

Both models support residents weighing up to 400 lb (181 kg), providing a robust lifting solution for institutional healthcare environments.

Durable Stainless Steel & Aluminum Construction

The corrosion-resistant frame is designed for demanding healthcare applications, providing long-term reliability and facilitating routine cleaning and disinfection.

Comfortable, Hygienic Seating

The seat and backrest are manufactured from molded closed-cell resin, offering smooth, comfortable surfaces that are easy to clean and disinfect.

Easy Maneuverability

Sealed double-wheel casters, directional locks and total-lock brakes support controlled movement and secure positioning during transfers.

Intuitive Caregiver Controls

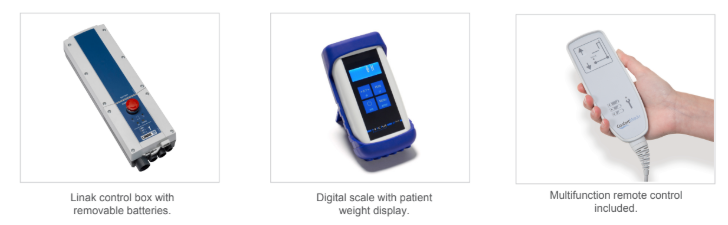

A multifunction hand control allows caregivers to operate the lift while monitoring battery status. A removable battery and charging system support daily use.

Integrated Safety Features

Emergency stop and emergency lowering functions provide additional safeguards, while a safety belt helps maintain resident positioning during operation.

Canadian-Made Quality

Designed and manufactured in Quebec by ComfortMedic, with serviceable components and replacement parts available in Canada.

Available Bathtub Hoist Models

CM1000 | Front-Access Bathtub Hoist

The CM1000 is designed for front access to compatible therapeutic bathtubs.

Its seating orientation allows residents to approach and enter the bathtub from the front, leaving both sides of the bathtub accessible to caregivers.

The front-access design provides additional working space around the bathing system and supports comfortable resident positioning throughout the bathing process.

The CM1000 is particularly well suited to bathing rooms where front entry is preferred based on bathtub design, room configuration and caregiver access.

CM2000 | Side-Access Bathtub Hoist

The CM2000 is designed for lateral access to compatible therapeutic bathtubs.

Its configuration allows residents to enter the bathtub from the side, making it especially suitable for inclined-back and other bathtub designs requiring lateral positioning.

The CM2000 features generous clearance between the lifting column and backrest, helping accommodate a variety of height-adjustable bathtubs.

This configuration provides facilities with additional flexibility when integrating a bathing hoist into an existing bathing room.

Flexible Design for Different Bathing Environments

ComfortMedic's CM-series bathing hoists are built around a shared lifting platform that can be configured for front-access or side-access operation.

This allows facilities to select a lifting arrangement based on their bathtub configuration, room dimensions and resident transfer requirements.

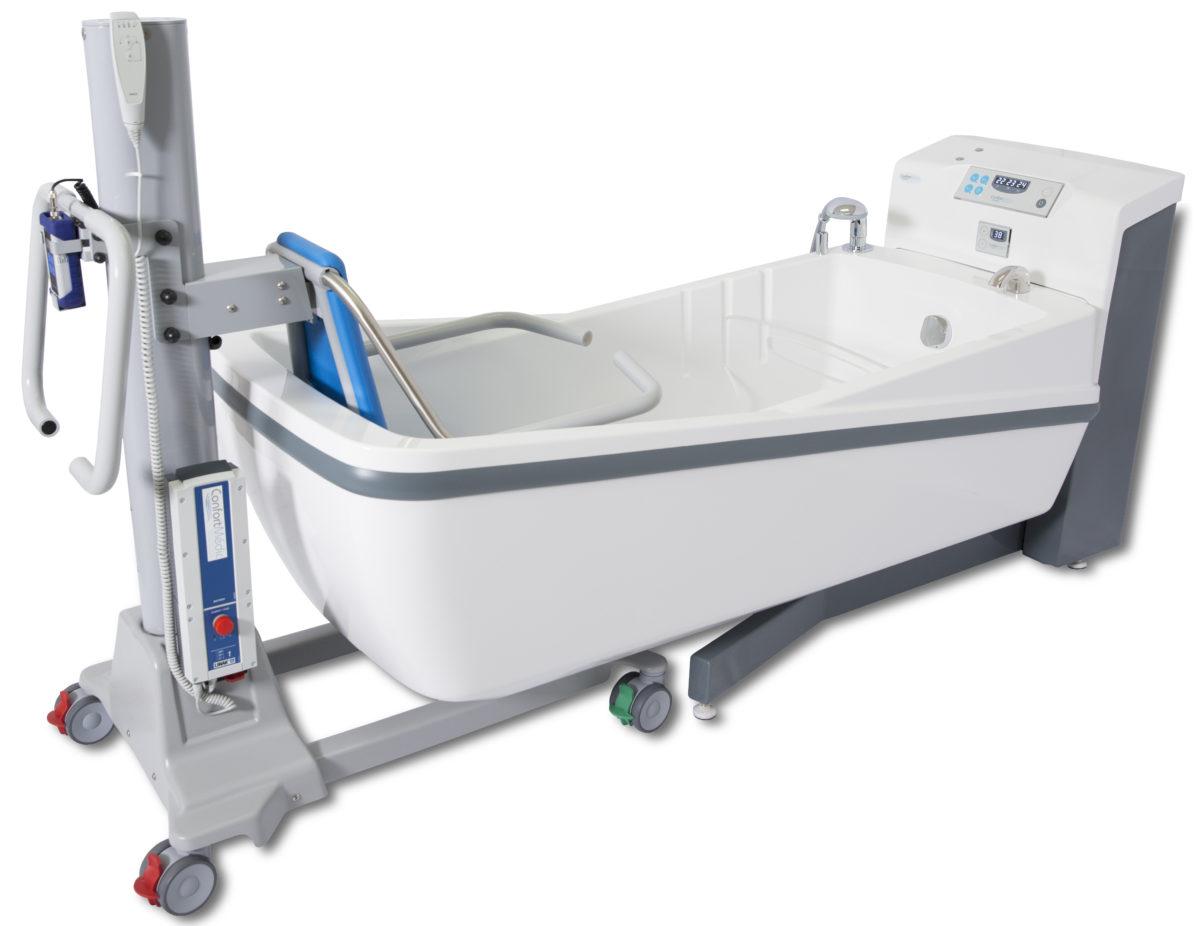

Both models are designed to work with compatible therapeutic bathing systems, including ComfortMedic's Authentique bathtub range.

Our team can assist with equipment compatibility and bathing room planning to ensure the appropriate configuration is selected.

Optional Accessories & Customization

Integrated Digital Scale

An optional digital weighing system allows caregivers to measure resident weight while seated in the bathing hoist, potentially reducing the need for separate weighing transfers.

Electric Braking System

An optional electrically operated braking system allows caregivers to engage the rear-wheel brakes using the hand control, reducing the need for manual foot operation.

Stainless Steel Bedpan

A removable stainless steel bedpan with lid and support frame is available for facilities requiring additional toileting and hygiene flexibility.

Armrest Configurations

Available armrest configurations allow facilities to select an arrangement suited to resident transfers and caregiver preferences.

Wider Base Frame

An optional wider base is available to accommodate certain bathtub designs and specialized installation requirements.

Technical Specifications

Maximum Resident Weight

400 lb (181 kg)

Electric Lifting System

24V Linak electric actuator

Lifting Range

Approximately 17.5" to 41.5" (444–1,054 mm)

Overall Dimensions

Approximately 42.9" L × 25.0" W × 54.3" H (1,089 × 636 × 1,379 mm)

Seat & Backrest Material

Molded closed-cell resin

Braking System

Directional-lock front casters and total-lock rear casters

Emergency Controls

Emergency stop and emergency lowering

Power System

Rechargeable, removable battery with charging system

Specifications and available equipment may vary by configuration.

Designed for Long-Term Care Environments

The CM1000 and CM2000 are designed to help caregivers provide dignified, comfortable bathing experiences while supporting safer resident handling.

Their durable frames, easy-to-clean seating surfaces and accessible components make them suitable for demanding institutional environments where equipment is used frequently throughout the day.

Canadian-Made, Locally Serviced

Manufactured in Quebec by ComfortMedic, the CM-series bathing hoists combine Canadian engineering with practical features developed specifically for healthcare facilities.

Lighthouse Medical proudly distributes and locally services ComfortMedic assisted bathing systems throughout British Columbia.

Our team supports equipment selection, bathtub compatibility, installation coordination and ongoing servicing.
